// Constants from Table 3 for Kareem et al. (2016) Correlation
const double a1 = 0.317842, a2 = 0.382216, a3 = -7.768354, a4 = 14.290531;
const double a5 = 0.000002, a6 = -0.004693, a7 = 0.096254, a8 = 0.166720;
const double a9 = 0.966910, a10 = 0.063069, a11 = -1.966847, a12 = 21.0581;
const double a13 = -27.0246, a14 = 16.23, a15 = 207.783, a16 = -488.161;
const double a17 = 176.29, a18 = 1.88453, a19 = 3.05921;
double[] poly1 = [a6, a7, a8, a9];
double[] poly2 = [a14, a13, a12];
double[] poly3 = [a17, a16, a15];
double[] poly4 = [0.01853, -0.8725, 3.182, -0.0523];
// Standing Correlations (Local Functions)
double _api_to_sg(double api) => 141.5 / (api + 131.5);
double _standing_ppc(double gas_sg) => 677.0 + 15.0 * gas_sg - 37.5 * gas_sg * gas_sg;
double _standing_tpc(double gas_sg) => 168.0 + 325.0 * gas_sg - 12.5 * gas_sg * gas_sg;
double _kareem_z(double p, double T, double gas_sg)
{
double T_R = T + 460.0, Ppr = p / _standing_ppc(gas_sg), Tpr = T_R / _standing_tpc(gas_sg);
double t = 1.0 / Tpr, dt = 1.0 - t, dt2 = dt * dt, tPpr = t * Ppr;
// Intermediate variables (A through G)
double A = a1 * t * Exp(a2 * dt2) * Ppr,
B = a3 * t + a4 * t * t + a5 * Pow(t, 6) * Pow(Ppr, 6),
C = Polyval(poly1, tPpr), D = a10 * t * Exp(a11 * dt2),
E = t * Polyval(poly2, t), F = t * Polyval(poly3, t), G = a18 + a19 * t;
// Equation 15: Reduced density y
double A2 = A * A, C2 = C * C, C3 = C2 * C,
denom_y = (1.0 + A2) / C - (A2 * B) / C3,
y = (D * Ppr) / denom_y;
// Equation 14: Compressibility factor z
double y2 = y * y, y3 = y2 * y, num_z = D * Ppr * (1.0 + y + y2 - y3);
double denom_z = (D * Ppr + E * y2 - F * Pow(y, G)) * Pow(1.0 - y, 3);
return num_z / denom_z;
}
double _standing_rs(double p, double T, double gas_sg, double API)
{
var term = (p / 18.2 + 1.4) * Pow(10, 0.0125 * API - 0.00091 * T);
return gas_sg * Pow(Max(term, 0.0), 1.2048);
}
double _standing_bo(double rs, double gas_sg, double T, double API)
{
var oil_sg = _api_to_sg(API);
var F = rs * Pow(gas_sg / oil_sg, 0.5) + 1.25 * T;
return 0.972 + 0.000147 * Pow(F, 1.175);
}
double _standing_rho_o(double rs, double gas_sg, double T, double API)
{
var bo = _standing_bo(rs, gas_sg, T, API);
var mass_per_stb = _api_to_sg(API) * 62.4 + 0.0136 * rs * gas_sg;
return mass_per_stb / (5.615 * Max(bo, 1e-9)); // In-situ density in lb/ft^3
}
double _beggs_robinson_mu_o(double rs, double gas_sg, double T, double API)
{
var x = Pow(T, -1.163) * Pow(10, 3.0324 - 0.02023 * API);
var mu_od = Pow(10, x) - 1.0;
var a = 10.715 * Pow(rs + 100.0, -0.515);
var b = 5.44 * Pow(rs + 100.0, -0.338);
return a * Pow(Max(mu_od, 1e-4), b);
}
double _lee_gonzalez_eakin_mu_g(double p, double T, double gas_sg, double z)
{
var T_R = T + 460.0;
var M = 28.97 * gas_sg;
var rho_g = (p * M) / (z * 10.732 * T_R * 62.4); // Gas density in g/cm^3
var K = (9.4 + 0.02 * M) * Pow(T_R, 1.5) / (209.0 + 19.0 * M + T_R);
var X = 3.5 + 986.0 / T_R + 0.01 * M;
var Y = 2.4 - 0.2 * X;
return 1e-4 * K * Exp(X * Pow(rho_g, Y));
}
double pressureGradient(double P, double T, double qliq, double wc, double gor, double API, double gas_sg, double d_in, double theta)
{
var G = 32.174; // ft/s^2
var oil_sg = _api_to_sg(API);
var d_ft = d_in / 12.0; // Convert diameter to feet
var rs = _standing_rs(P, T, gas_sg, API);
var z = _kareem_z(P, T, gas_sg);
var bg = 0.02827 * z * (T + 460) / P; // Gas formation volume factor
var bo = _standing_bo(rs, gas_sg, T, API);
var mu_O = _beggs_robinson_mu_o(rs, gas_sg, T, API);
var mu_G = _lee_gonzalez_eakin_mu_g(P, T, gas_sg, z);
var qoil = qliq * (1 - wc); // STB/day
var qwater = qliq * wc; // STB/day
var qgas = qoil * gor / 1000.0; // Mscf/day
var qL = (qoil * bo + qwater) * 5.615 / 86400.0; // ft^3/s
var qG = Max(qoil * (gor - rs), 0) * bg / 86400.0; // ft^3/s
var A = 0.25 * pi * d_ft * d_ft; // Cross-sectional area
(var vsl, var vsg) = (qL / A, qG / A); // Superficial velocities
var vm = Max(0, vsl + vsg); // Mixture velocity
var lam = Clamp(vsl / Max(vm, 1e-9), 1e-9, 1.0); // No-slip liquid holdup
var rho_O = _standing_rho_o(rs, gas_sg, T, API);
var rho_G = 2.7 * (P * gas_sg) / (z * (T + 460.0)); // Gas density
var rho_L = (qoil * rho_O + qwater * 62.4) / Max(qliq, 1e-9); // Liquid density
// Beggs & Brill Transition Boundaries
var NFR = Pow(vm, 2) / (G * d_ft); // Froude Number
var L1 = 316.0 * Pow(lam, 0.302);
var L2 = 0.0009252 * Pow(lam, -2.4684);
var L3 = 0.1 * Pow(lam, -1.4516);
var L4 = 0.5 * Pow(lam, -6.738);
// Flow Pattern Determination
string pattern = (lam, NFR) switch
{
var (l, n) when (l < 0.01 && n < L1) || (l >= 0.01 && n < L2) => "segregated",
var (l, n) when l < 0.1 && n >= L2 && n <= L3 => "transient",
var (l, n) when (l is >= 0.01 and <= 0.4 && n > L3 && n < L1)
|| (l > 0.4 && n > L3 && n < L4) => "intermittent",
_ => "distributed"
};
// Horizontal Holdup HL(0)
double h10(string pat)
{
var (a, b, c) = pat switch
{
"segregated" => (0.98, 0.4846, 0.0868),
"intermittent" => (0.845, 0.5351, 0.0173),
"distributed" => (1.065, 0.5824, 0.0609),
_ => (0.0, 0.0, 0.0)
};
return Max(a * Pow(lam, b) / Pow(NFR, c), lam);
}
// Inclination Correction Coefficient C
var sigma = 30.0; // Liquid surface tension (dyne/cm)
var NLv = rho_L > 0 ? vsl * Pow(rho_L / (G * sigma), 0.25) : 0;
double cc(string pat)
{
if (pat == "distributed") return 0.0;
var (e, f, gg, h) = pat switch
{
"segregated" => (0.11, -3.768, 3.539, -1.614),
"intermittent" => (2.96, 0.305, -0.4473, 0.0978),
_ => (0.0, 0.0, 0.0, 0.0)
};
return Max((1.0 - lam) * Log(e * Pow(lam, f) * Pow(Max(NLv, 1e-9), gg) * Pow(NFR, h)), 0.0);
}
double psi(string pat)
{
var theta_rad = theta * pi / 180.0;
var s = Sin(1.8 * theta_rad);
return 1.0 + cc(pat) * (s - 0.333 * Pow(s, 3));
}
// Liquid Holdup Calculation
var HL = h10(pattern) * psi(pattern);
if (pattern == "transient")
{
var w = (L3 - NFR) / (L3 - L2);
var Hlseg = h10("segregated") * psi("segregated");
var Hlint = h10("intermittent") * psi("intermittent");
HL = w * Hlseg + (1.0 - w) * Hlint;
}
HL = Clamp(HL, lam, 1.0);
// Densities & Viscosities
var rhom = rho_L * HL + (1.0 - HL) * rho_G; // Mixture density
var rhons = rho_L * lam + rho_G * (1.0 - lam); // No-slip density
var mu_W = 1.0; // Water viscosity (cP)
var mu_L = mu_O * (1.0 - wc) + mu_W * wc; // Liquid phase mixture viscosity
var muns = mu_L * lam + mu_G * (1.0 - lam); // No-slip viscosity
// Hydrostatic / Elevation Gradient
var dpdz_elevation = rhom * Sin(theta * pi / 180.0) / 144.0;
// Friction Pressure Gradient
var Re = rhons * vm * d_ft / (muns * 6.7197e-4); // Reynolds number
var fns = Re > 0 ? 0.0056 + 0.5 / Pow(Re, 0.32) : 0.02; // No-slip friction factor
var y = lam / Pow(Max(HL, 1e-9), 2);
double S = Log(2.2 * y - 1.2);
if (y < 1.0 || y > 1.2)
{
var ly = Log(Max(y, 1e-9));
var denom = Polyval(poly4, ly);
S = Abs(denom) > 1e-9 ? ly / denom : 0.0;
}
var ftp = fns * Exp(S); // Two-phase friction factor
var dpdz_friction = 2.0 * ftp * rhons * Pow(vm, 2) / (G * d_ft) / 144.0; // Friction gradient
// Kinetic Energy Acceleration Term (Ek)
var Ek = (rhom * vm * vsg) / (G * P * 144.0);
return (dpdz_elevation + dpdz_friction) / Max(1.0 - Ek, 0.001);
}
// Well Input Parameters
double Pwh = 200; // psia
double depth = 9200; // ft
double ID = 2.441; // in
double API = 35; // API gravity
double Tsurf = 100; // °F
double Tdownhole = 210; // °F
double Tgrad = (Tdownhole - Tsurf) / depth; // °F/ft
double watercut = 0.1; // fraction
double gor = 250; // scf/STB
double gas_sg = 0.65; // gas specific gravity
double pfun(double qliq)
{
var (Z, P) = Ode45((z, p) => pressureGradient(p, Tsurf + Tgrad * z,
qliq, watercut, gor, API, gas_sg, ID, 90), Pwh, [0, depth]);
return P[^1]; // Bottomhole pressure
}

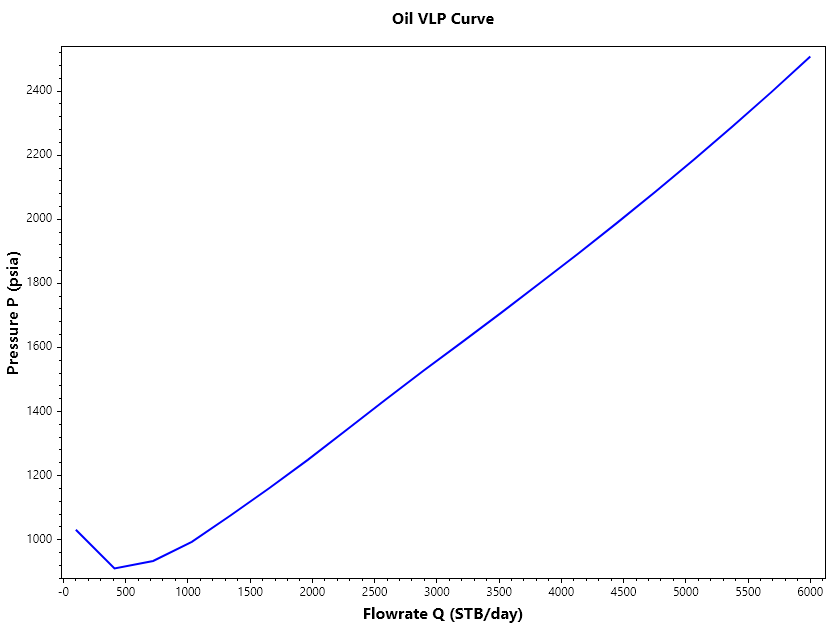

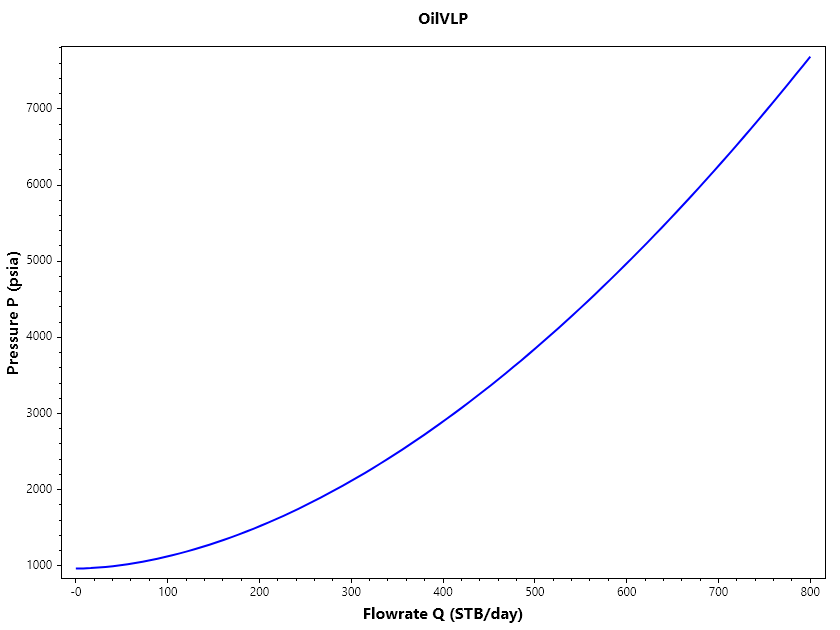

ColVec Qrange = Linspace(100, 6000, 20),
Prange = Arrayfun(pfun, Qrange);
Plot(Qrange, Prange, "b", 2);
Xlabel("Flowrate Q (STB/day)");
Ylabel("Pressure P (psia)");
Title("Oil VLP Curve");
SaveAs("Multiphase_VLP.png");
